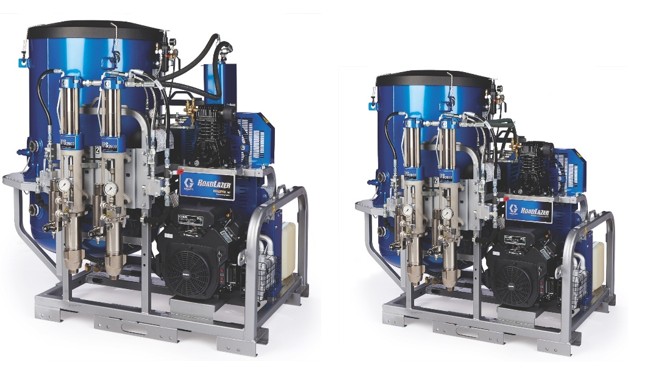

With its modular design, the Graco RoadLazer RoadPak System is designed to be as easy to use as a walk-behind striper with high production speeds normally only found on Long Line trucks.

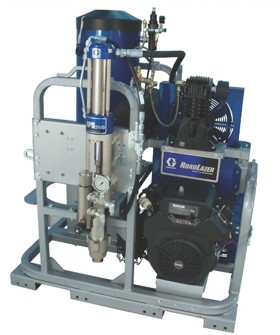

Option 1 is a truck-mounted system featuring a 1-pump RoadPak Pump System with a 450-pound Bead Tank, 2-Gun Arm, Advanced Controller and Simple Guide System.

• RoadPak Pump System
  • Heavy-Duty RPS 2900 Hydraulic System
    • No-stall design provides unmatched productivity
    • Maximum pressure of 200 bar
  • Proven Displacement Pump System
    • Delivering outstanding results in pumping paint for decades
    • Prime valve allows you to recirculate paint keeping it mixed and ready to go
  • Bead Tank System
    • ASME rated and can drop at a rate of up to 18 kg per minute
    • Easier material loading with large fill spout opening
• RoadPak 1-Pump/2-Gun Arm
  • Fast set-up, high output
  • 3 Gun capacity
  • No-tools gun adjustments
• Advanced Controller
  • Less Setup Time
  • Built-in advanced patterns for quick recall
  • Pattern preview gives a quick visual of colors and patterns selected
  • Export capabilities allow for “proof of job”
• Heavy-Duty Modular Frame System
  • Heavy-duty steel frame is built to last
  • Simple to add the options you want in minutes - optimizing your striping system
  • Small frame size allows it to fit almost anywhere - from the back of a pickup or flatbed truck to the bed of a utility vehicle
• Heavy-Duty Compressor
  • 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min)
  • Accumulation tank supports up to 5 airless paint guns and 5 bead guns
• Kohler® Power
  • 19 HP (14.2 kW) Kohler engine
  • Over 15 years of reliable experience
• System Options
  • RoadView HD Camera
  • Gun Lift Winch Kit
  • Rear Seat Kit
  • Steerable Carriage
  • 2 Color - 2 Pump / 2 Gun System
  • 450- or 1,350-Pound Bead Tank
  • 3 Gun Arm
