Intelligent Gas Detector

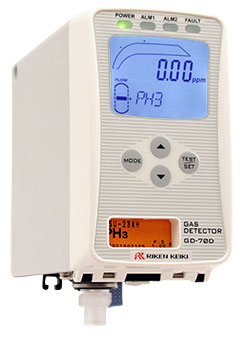

The new Model GD-70D smart gas detection transmitter series sets a new standard for performance, flexibility, and versatility. The GD-70D sample-draw transmitter offers an array of sensor technologies unmatched in the industry, including unique offerings, such as our hydrogen-specific or LEL versions.

The long life high capacity pump and wide variety of sensing elements are replaceable in a few seconds, with no tools required! The smart sensors retain all calibration and sensor-specific data in non-volatile memory, so sensors can be hot-swapped in the field with no programming required. The sensors also retain calibration information, which means they can be conveniently calibrated separate from the transmitter, avoiding transport of calibration gases to the field location. The GD-70D firmware automatically corrects for long-term zero and span “drift” minimizing maintenance and maximizing reliability.

The GD-70D can be used as a stand-alone device, offering a number of communication protocols to existing PLC systems, or can be integrated with RKI’s Beacon series of single and multi-channel controllers.

All GD-70D transmitters include a large, easy to read integral LCD display, tri-color bar graph for visual notification of alarm status, programmable low and high alarm relays, and fault relay. Pump flow is self-tuning for maintenance-free operation. Because all GD-70D base units are identical, sensors can be interchanged with no programming or tools required, resulting in maximum flexibility to the user.

• Monitor combustibles, O2, and a wide range of toxics
• Plug and play smart sensors retain calibration and sensor data
• Common platform (Main unit / Sensor / Pump) for all detection methods
• Universal main unit (all sensor types)
• Multifunctional sensor unit (New Intelligent sensor)
• No internal tubing (main unit) / No coil (pump)
• Front access, no tool required, easy sensor and pump replacement
• Large size LCD screen
• Various communication methods available (4-20mA, NT and PoE)
• Minimal maintenance cost through enhanced troubleshooting firmware functions
• Small mounting space
• Environmentally friendly
• Wide variety of sensors available
